From paper to Interactive Electronic Technical Manuals.

Technical Publication
Services Corp.

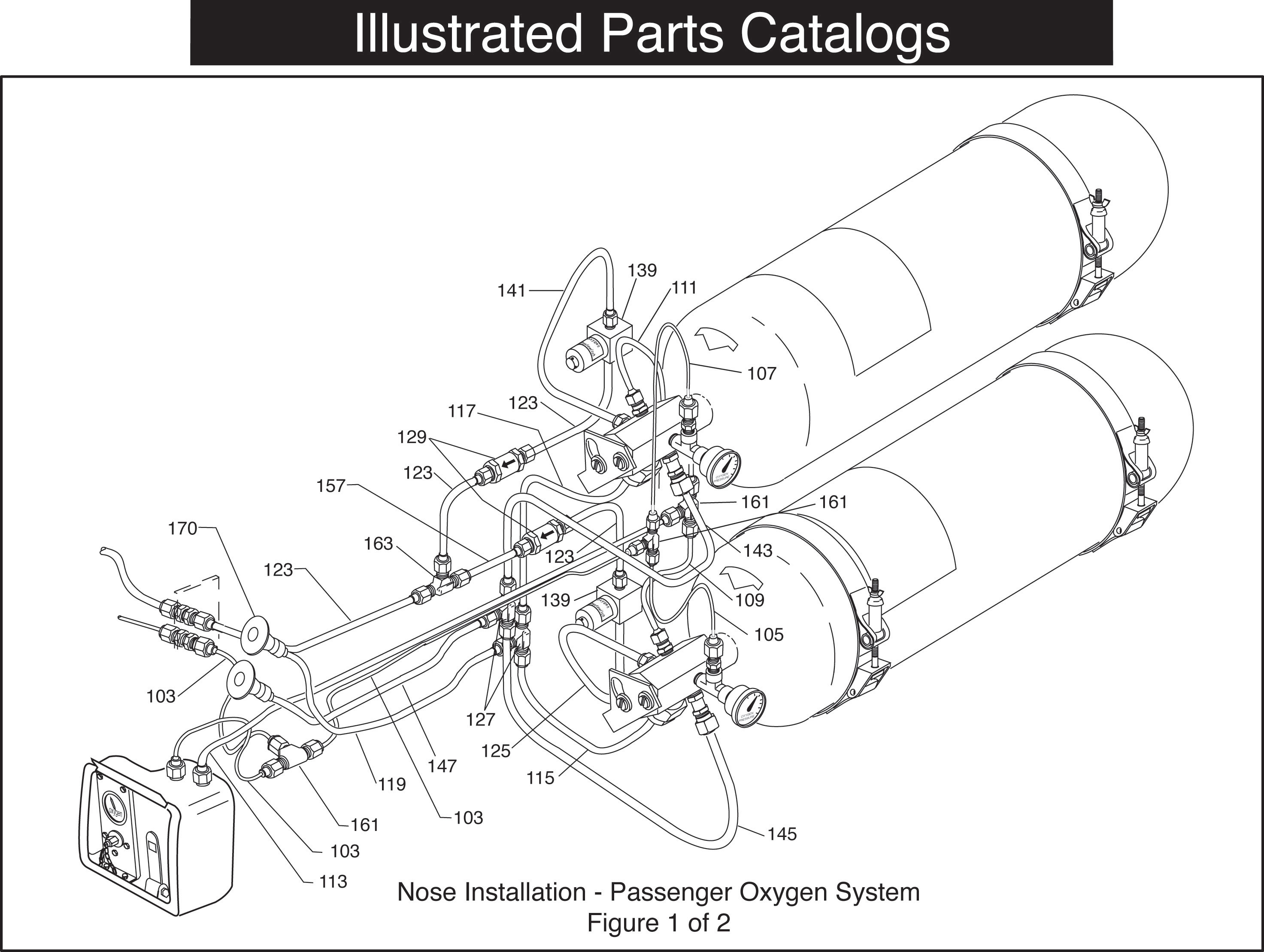

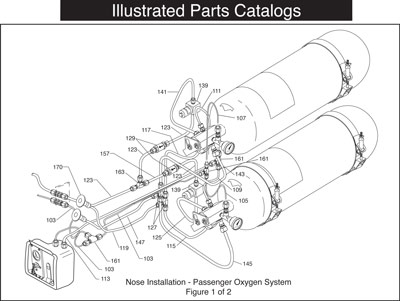

passenger oxygen system nose installation

STC support for passenger oxygen system.

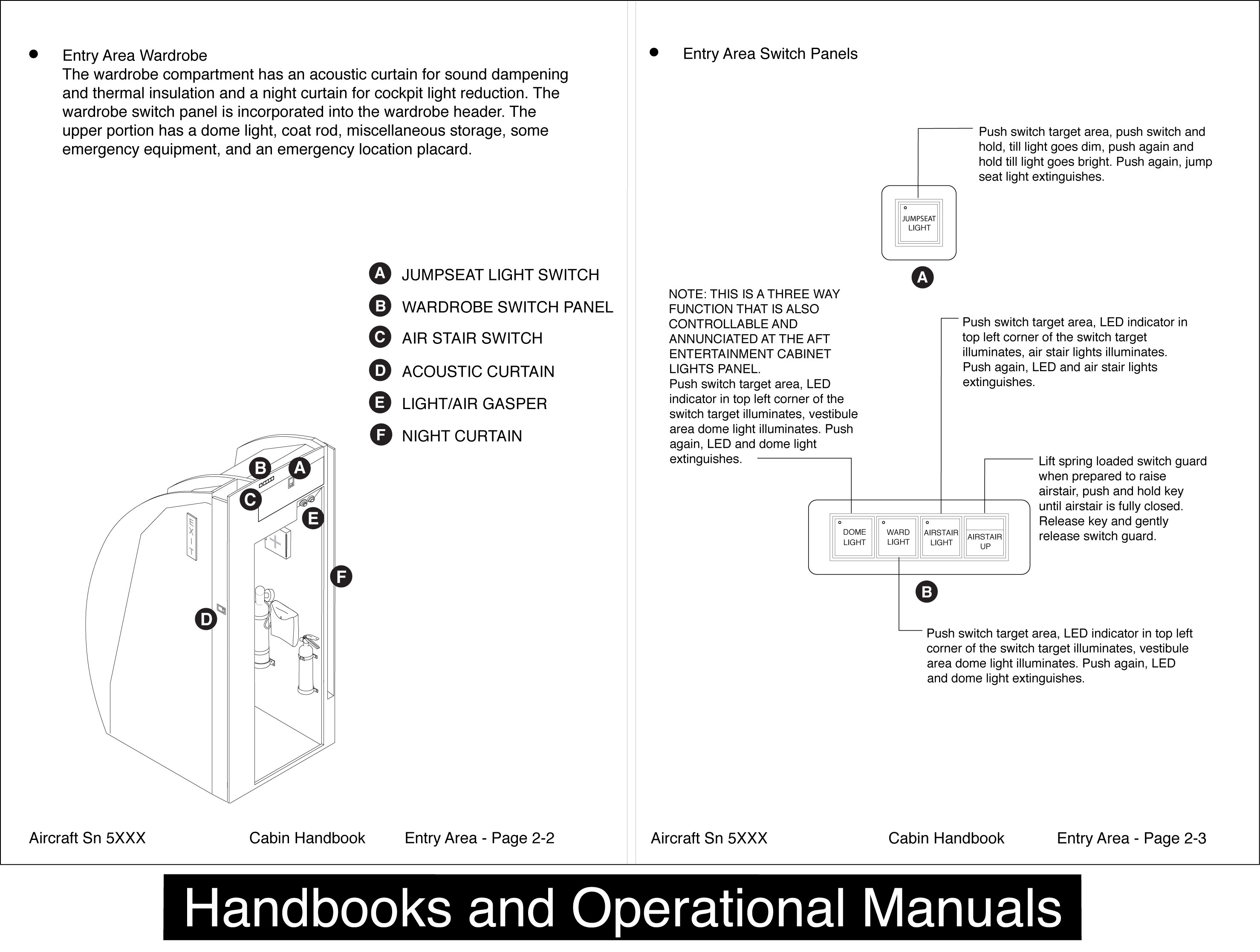

cabin handbook

Cabin handbook for corporate aircraft completion.

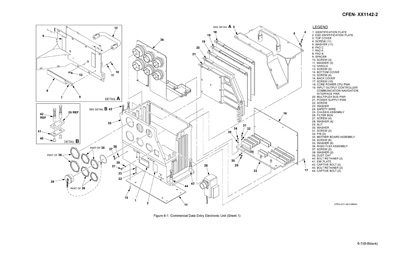

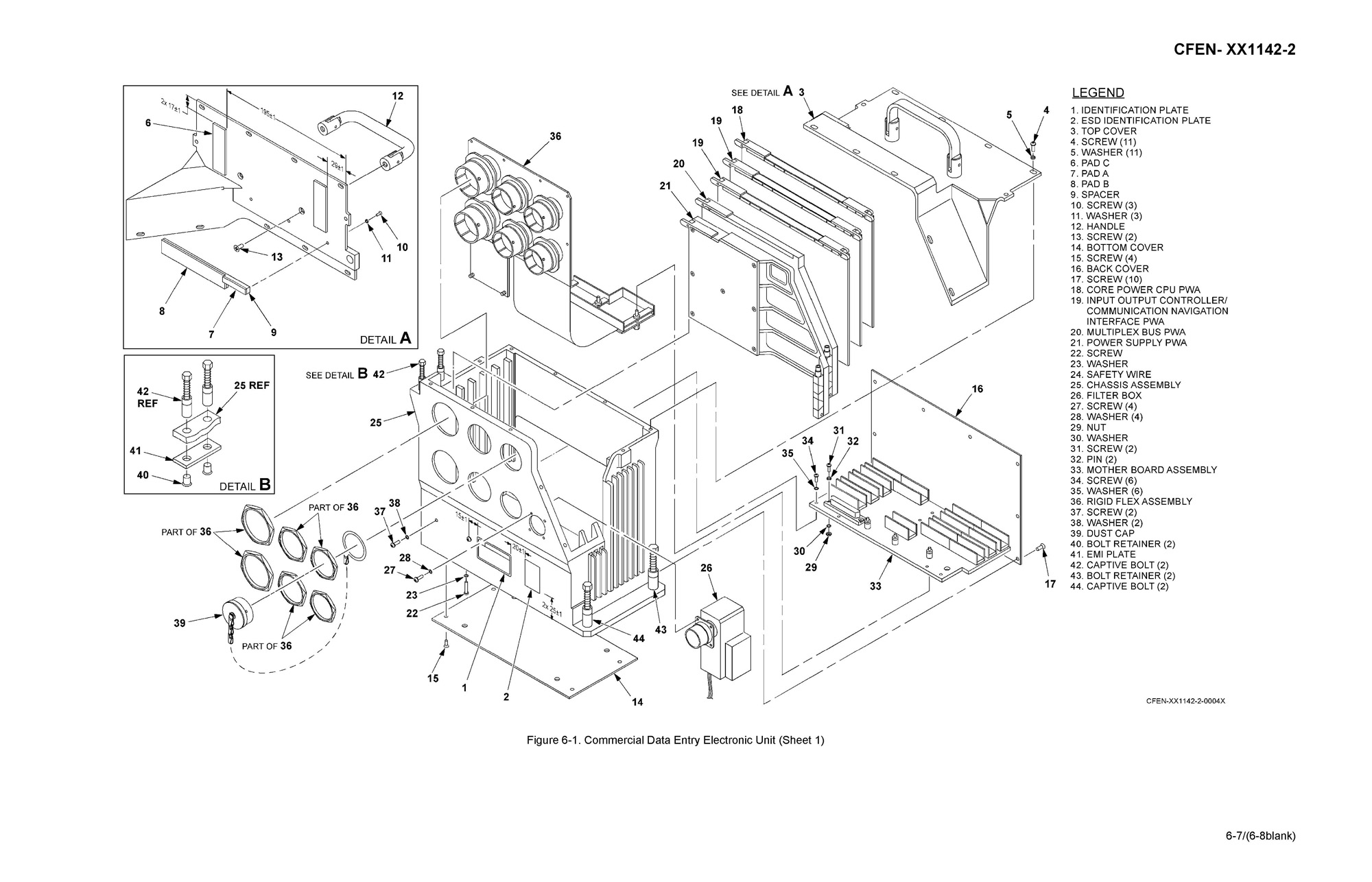

military style illustration

Military style specification for illustrating. (F-16 component)

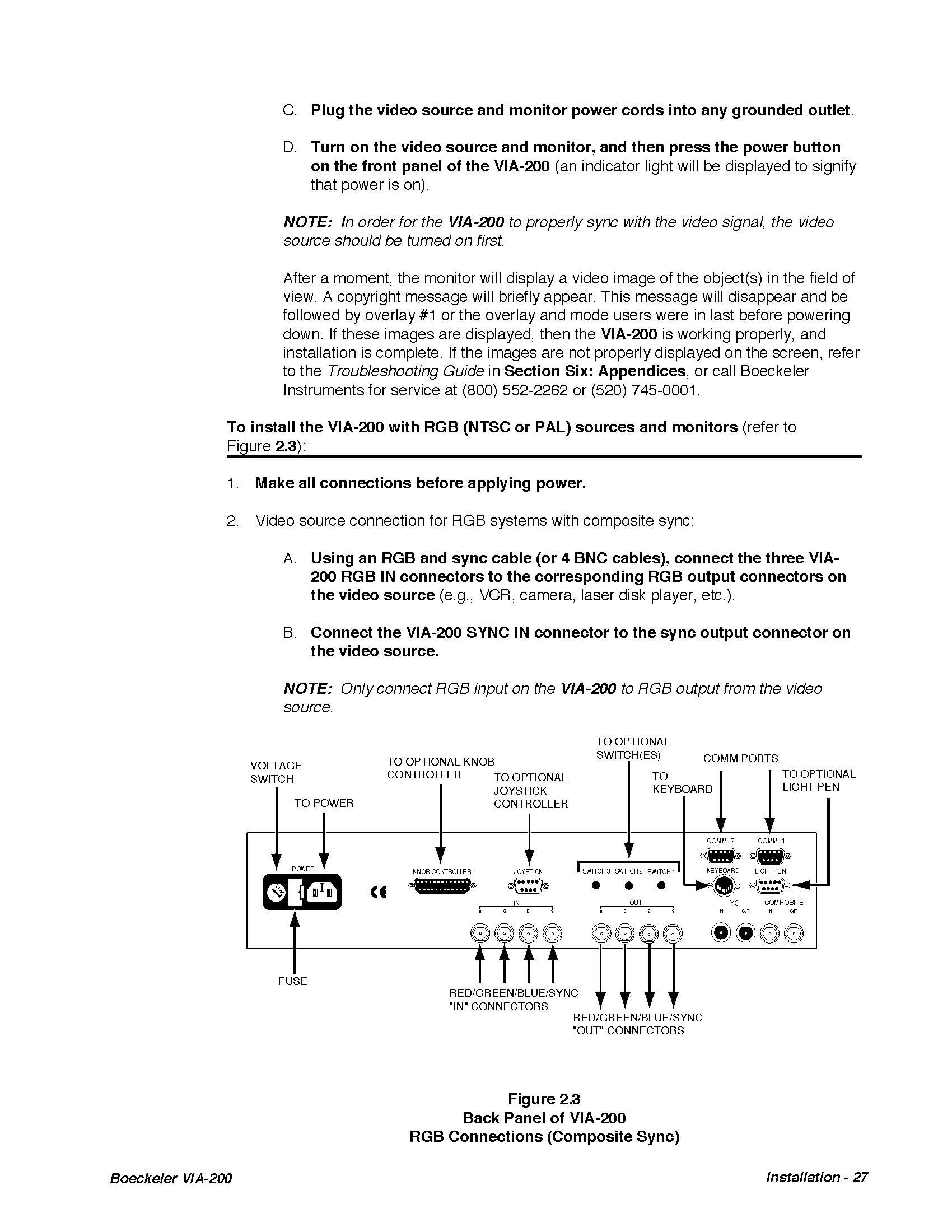

install guide

Sample of an installation guide.

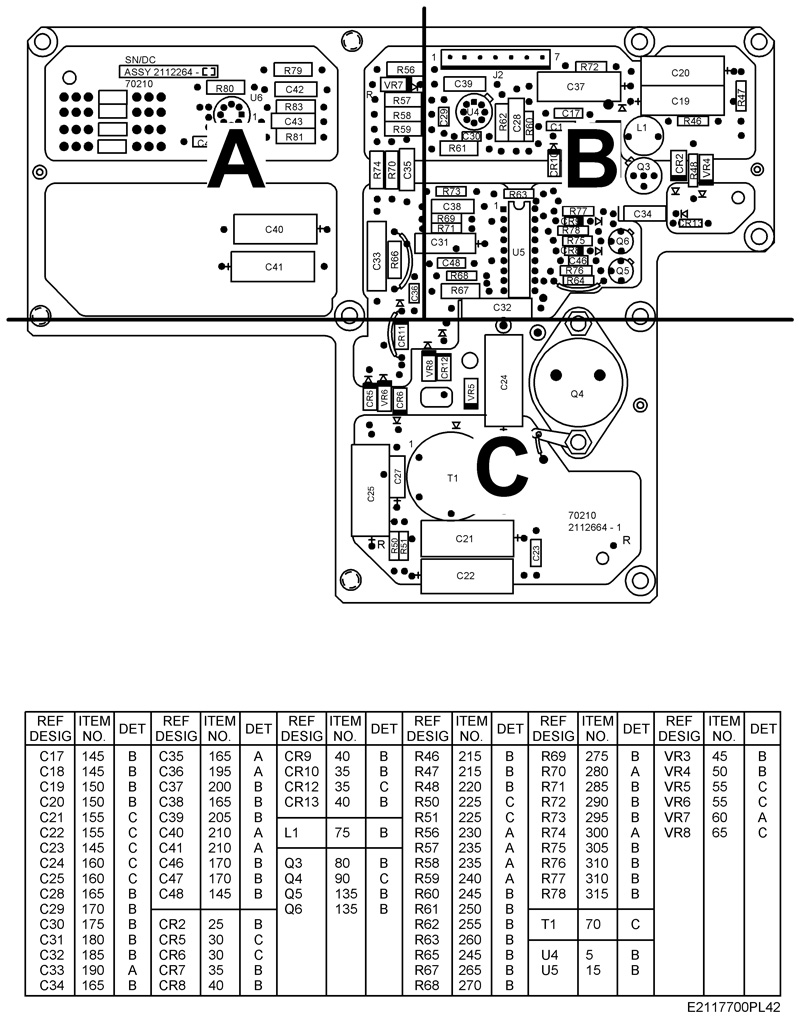

circuit board ipl

Sample of one way to call out item numbers for a circuit board in a illustrated parts list that requires ATA 100 specification.

Technical illustrating

Tell us what you need and TPS will deliver.

TPS works with a large variety of software to deliver documentation in the formats our customers want and need.

There are two type of image files; vector and raster.

Vector graphics is the use of geometrical primitives such as points, lines, curves, and shapes or polygon(s), which are all based upon mathematical equations, to represent images in computer graphics.

In computer graphics, a raster graphics image or bitmap, is a data structure representing a generally rectangular grid of pixels, or points of color, viewable via a monitor, paper, or other display medium. Raster images are stored in image files with varying formats.


CGM (Computer Graphics Metafile) is a file format for 2D vector graphics, raster graphics, and text, and is defined by ISO/IEC 8632. All graphical elements can be specified in a textual source file that can be compiled into a binary file or one of two text representations. CGM provides a means of graphics data interchange for computer representation of 2D graphical information independent from any particular application, system, platform, or device. It has been adopted to some extent in the areas of technical illustration and professional design, but has largely been superseded by formats such as SVG and DXF.

Other image file formats of vector type include: Encapsulated PostScript, PDF, SWF,Windows Metafile.
